Product introduction

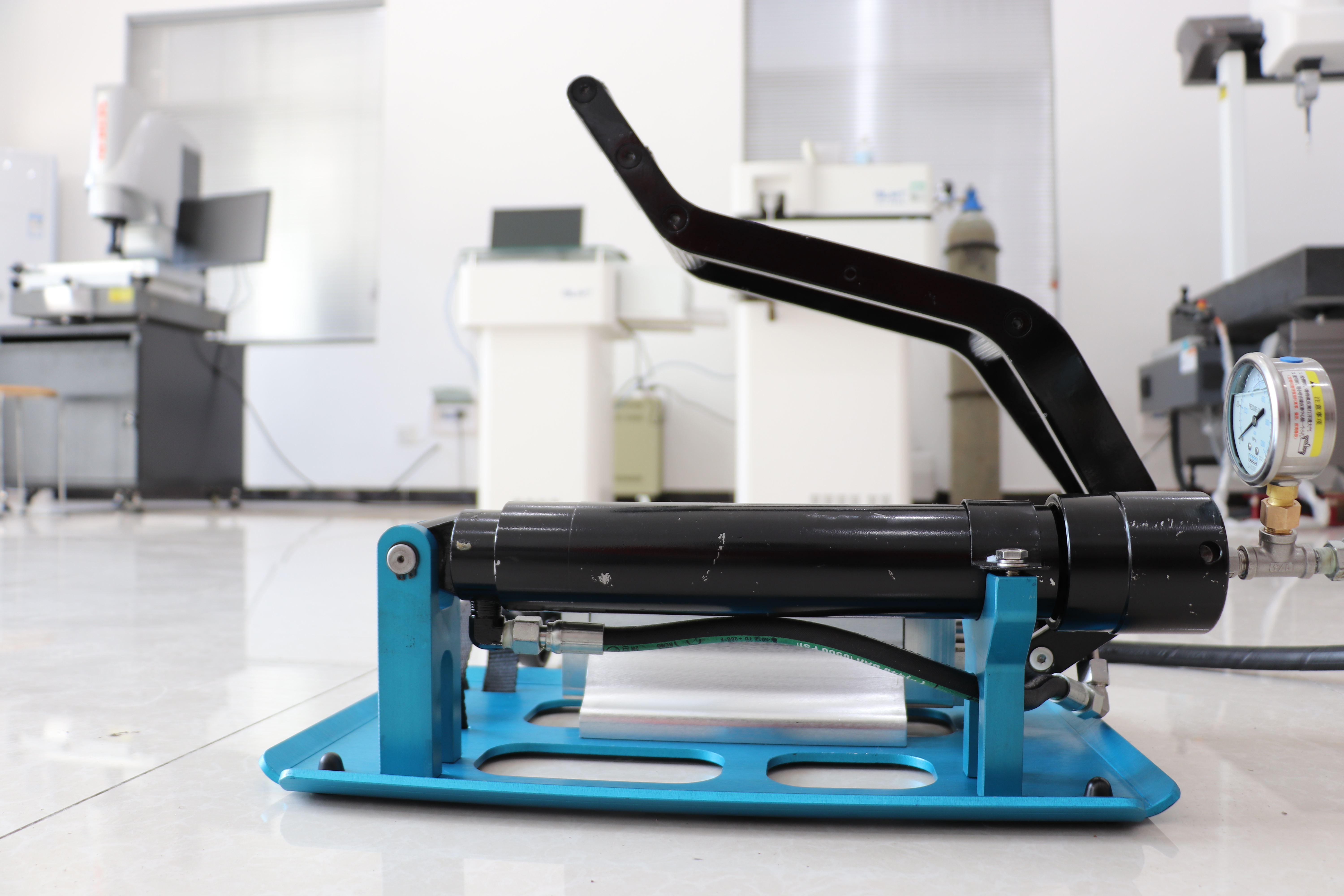

Portable pedal-operated hydraulic grease gun S70

S70 is a new type of portable pedal type hydraulic grease gun, which has the characteristics of convenient operation, labor saving, light weight, fast grease injection speed and so on. It is widely used in the assembly, maintenance and repair of high-pressure plug valves.

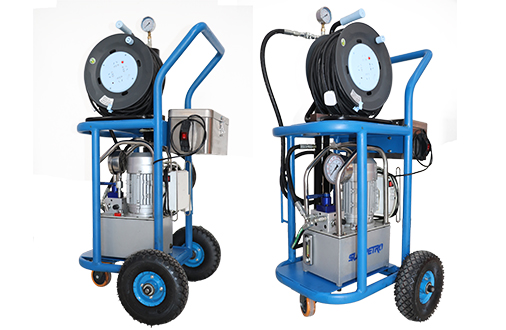

Electric hydraulic grease gun ES-105

Es-105 is a new type of electric high-pressure grease injection equipment, which has the characteristics of rugged and compact structure, high pressure grease injection and flexible use on site. The internal safety valve equipped with the hydraulic system provides maximum safety protection when the operator presses the sealing grease, and the manual directional valve controls the expansion and contraction of the high-pressure oil cylinder. The ES-105 is powered by an electric pressure pump and does not require an air power. The electric grease injection machine can easily and efficiently complete the grease filling maintenance in a short time.

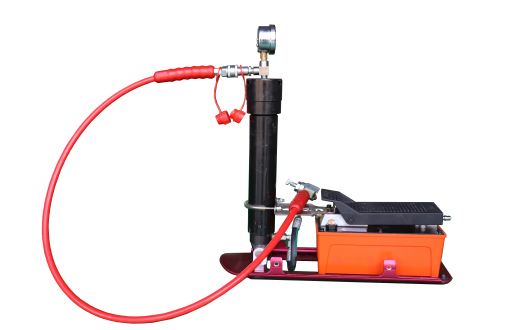

Pneumatic grease gun S-70A

S-70A is a new type of artificial portable pneumatic grease gun, which has the characteristics of strong, light weight, portability, free of manual grease operation, can be used in any place with air source. The hydraulic system is equipped with an internal safety valve to provide maximum safety protection when the operator presses into the seal grease. Pneumatic grease gun can easily and efficiently complete grease maintenance in a short time, special tools can easily return the piston to the initial position, easy to load new seal grease.


product feature

S70 Parameter

Resistance:10000PSI

Medium: Lubricating Grease

Operation:Foot-operated trigger
Injection speed: 1 oz / 13 stroke (high pressure)






ES-105 Parameter

Equipment configuration :3 meters high pressure hose, 15,000PSI pressure gauge, pressure gauge protection sleeve, two-way rotary connector, large nozzle connector. Hydraulic pump only need regular maintenance, internal safety pressure relief valve can set at 15000PSI avoid of overpressure, 50 meters winding disk.



Hydraulic Oil: 8L

Resistance:15000PSI

Lubricating Grease: J、P、CT12

Injection speed: 8 oz /30 1-60 seconds

Dimensions:600mm*430mm*1070mm

Weight: 75kg






S-70A Parameter

Equipment configuration: valve body grease nozzle connection clamp, 2 meters high pressure hose, piston rollback tool, high pressure quick connection and gauge.

Charging: pneumatic charging

Hydraulic Oil: 1L

Resistance:10000PSI/70MPa

External air source pressure: 0.3-0.8MPa

Lubricating Grease: J、K

Injection speed: 1oz /24route

Dimensions:490mm*180mm*590mm

Weight: 19kg
